WEEK 07 DAY 01 FITNESS TECH Generated by Gemini Code Assist

Gym Management Revolution

Strategic analysis of the modern Gym Management System (GMS) - transitioning fitness businesses from manual operations to automated digital hubs.

1. The Core Purpose and Problems Solved

Gym management software is designed to transition fitness businesses from manual, paper-based operations to automated digital systems.

Disparate Systems

Owners struggle with unconnected software (CRM, Billing, Website) that requires manual double-entry.

Financial Instability

Manual tracking leads to cash flow stress. Automated billing ensure revenue recovery.

Member Retention

Software identifies "pain points" allowing owners to manage gym flow and reduce churn.

WEEK 07 DAY 02 FITNESS TECH

Strategic Use Cases

Defining the core interactions: registration, membership tracking, goal setting, and proactive admin alerts.

1. New Member Registration

Admin inputs personal details, physical baseline, and fitness goals for the 6, 9, and 12-month marks.

4. Admin Dashboard Alerts

A dedicated "Alerts" widget highlights users whose membership is expiring within 7 days for proactive retention.

WEEK 07 DAY 03

Journey & Design

Mapping the user lifecycle, defining the database schema, and visualizing the mobile interface.

Data Dictionary Highlights

user_id: UUID
full_name: Text
membership_status: Enum

baseline_weight: Decimal
expiry_date: Date
goal_marks: JSON

WEEK 07 DAY 04

System Diagrams

Visualizing the process flow and data relationships.

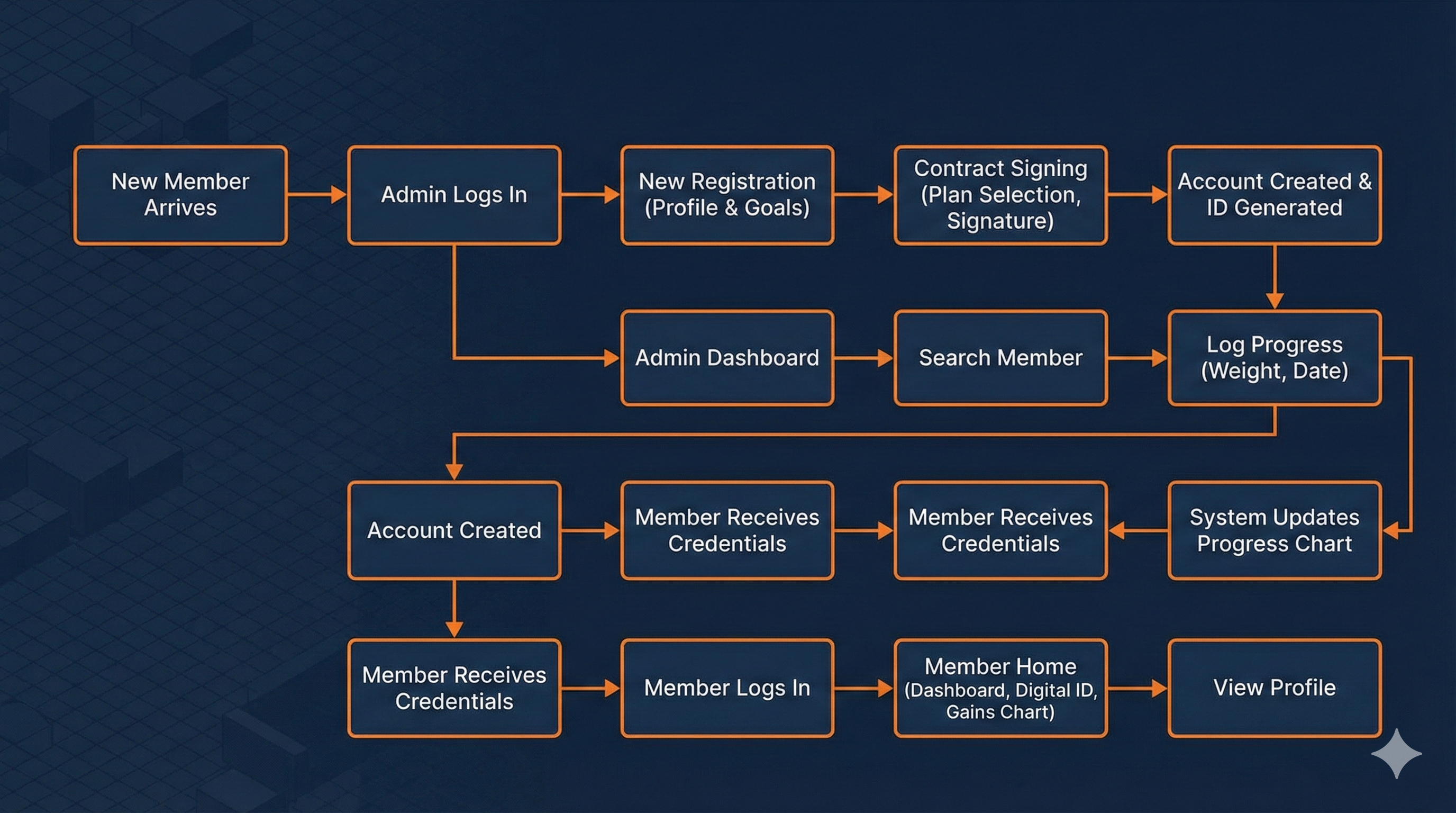

Process Flow

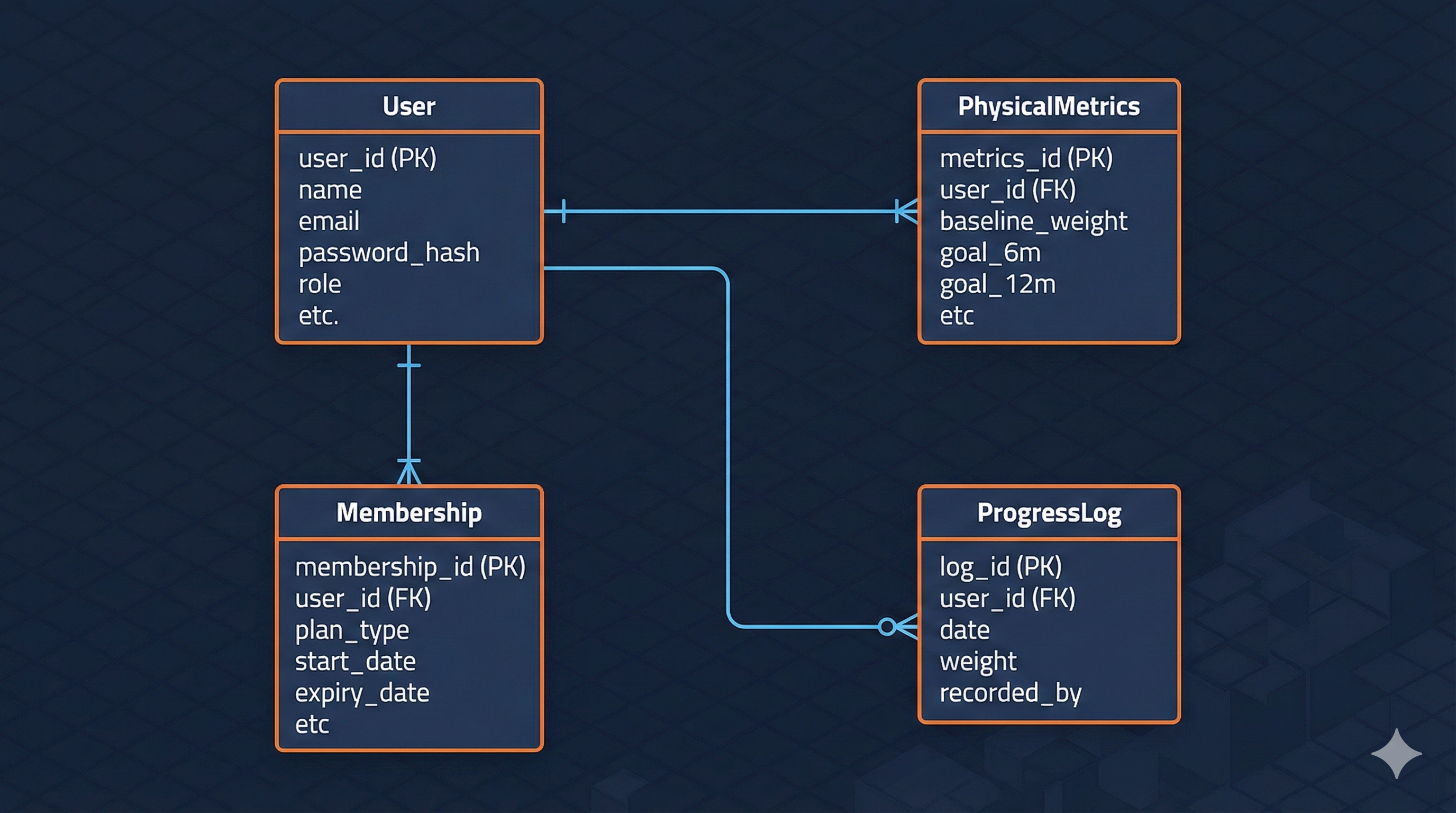

ER Diagram

WEEK 07 DAY 05

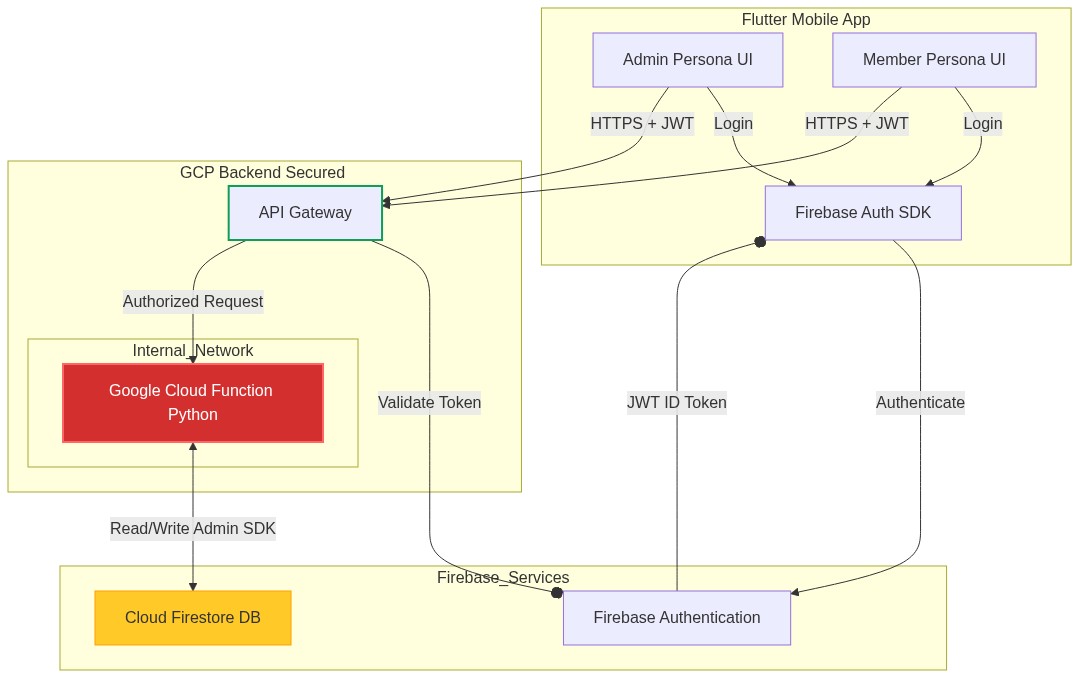

Cloud Architecture

The serverless perimeter powered by GCP and Firebase.

WEEK 07 DAY 06 IMPLEMENTATION

Project Build & Config

Comprehensive overview of the application components and the sequential creation process.

1. Core Components Overview

Infrastructure & Deployment

Collection of bash scripts (setup.sh, deploy.sh) that automate project creation, API enablement, and IAM configuration.

Database & Storage

Firestore handles NoSQL user profiles and progress logs, while Cloud Storage stores generated PDF membership agreements.

Authentication

Firebase Auth provides native Email/Password identity management and issues secure JWTs for backend verification.

Python Backend

A Flask-based application deployed as a Cloud Function. It handles PDF generation, business logic, and database operations.

API Gateway

Acts as the secure front door, intercepting and validating Firebase JWTs natively before forwarding requests to the private backend.

Mobile Frontend

Cross-platform Flutter app providing high-performance interfaces for both Admins and Fitness Members.

2. Creation & Deployment Sequence

1

Infrastructure Initialization

Script: setup.sh

Creates the GCP project, enables APIs (Cloud Functions, Firestore, API Gateway), initializes the database, and configures the gym-backend-sa Service Account.

2

Identity & App Registration

Tools: flutterfire configure

Links the mobile app to Firebase, injects config files (google-services.json, etc.), and enables Email/Password authentication in the console.

3

Backend & Gateway Deployment

Script: update_backend.sh

Deploys the Python logic, generates the OpenAPI spec, and configures the API Gateway to route traffic securely, outputting the final Gateway URL.

4

Initial Data Seeding

Script: create_admin.sh

Securely connects to the live database to create the foundational admin@gym.com user with explicit RBAC permissions.

5

Mobile App Launch

The Flutter code is updated with the live Gateway URL, dependencies are fetched, and the app is compiled for iOS/Android, resulting in a fully connected system.

WEEK 07 DAY 07 EXECUTION GUIDE

Setup & Deployment

A comprehensive, step-by-step walkthrough to configure the cloud infrastructure, seed the database, and launch the mobile application.

Explore the Source Code

The complete codebase for the My Gym Management system, including the deployment scripts, Python Flask backend, and the Flutter mobile application, is available on GitLab.

View Repository on GitLab

Deployment Walkthrough

Follow this sequence of operations, detailed in the repository's BUILD_INSTRUCTIONS.md, to construct the entire ecosystem from scratch.

1

Google Cloud Infrastructure Setup

Initialize the core environment using automated shell scripts.

Identify your GCP Billing Account ID via gcloud beta billing accounts list.
Update gcp_deployment/setup.sh with your specific Billing ID.
Execute the script to create the project, link billing, enable APIs, and establish the required Service Accounts.

2

Firebase App Configuration

Link the mobile applications to the backend identity provider.

Run the flutterfire configure CLI tool within the mobile project directory.
Select the GCP project created in Step 1 to auto-generate the iOS and Android connection profiles.
Navigate to the Firebase Console and enable the Email/Password authentication provider.

3

Backend Logic & API Deployment

Deploy the Python business logic and secure the perimeter.

Execute the update_backend.sh script.
This packages the Flask app into a Cloud Run service and configures the API Gateway based on the OpenAPI template.
Crucial: Copy the final Gateway URL outputted by the script.

4

Mobile App Wiring & Launch

Connect the Flutter application to the live gateway.

Open lib/core/constants/api_constants.dart in the Flutter source code.
Update the baseUrl variable with the Gateway URL from Step 3.
Run flutter pub get and flutter run to launch the app.

5

Admin Data Seeding

Establish the initial administrative user to bypass standard member onboarding.

Authenticate your local terminal via gcloud auth application-default login.
Execute create_admin.sh.
This bypasses normal registration to inject an admin@gym.com profile directly into Firestore with the required elevated RBAC permissions.
